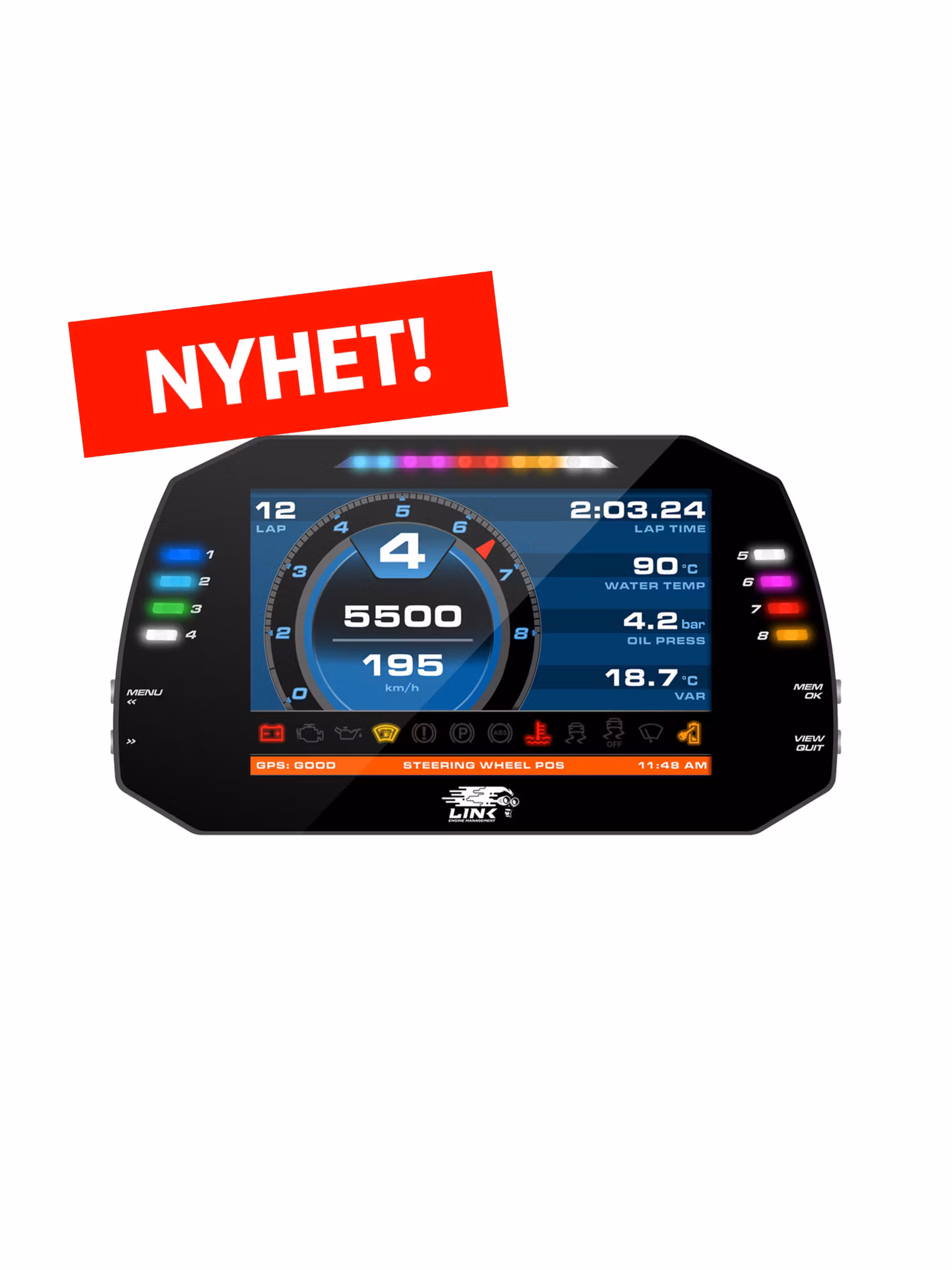

LINK MXG Strada Light 7” Dash - Race

NYHET! Link MXG Strada Race Light 7” display, powered by Aim Technologies.

Link MXG Race Light utgåvan har skapats som en mer tillgänglig produkt för personer som inte behöver så många analoga ingångar och behöver bara en CAN-anslutning från sin ECU. Den påminner om föregångaren, men har istället 4st analoga ingångar på 500Hz vardera, istället för 8st. Något som inte påverkar de flesta när mycket information byggs och kan sändas ut via CAN-signaler idag från din ECU.

Dashen finns i 2 olika versioner, en Street- och en Raceversion.

The Link MXG Strada Race Light is a compact, road-ready digital dash display, built for users who want a clean, ECU-based setup without extra sensor wiring. Featuring a crisp 7" TFT screen, programmable shift lights, and integrated road icons, it delivers key driving data with clarity and style.

Ideal for track use, the Strada Race Light offers essential real-time data in a sleek, minimal format—perfect for performance builds where simplicity and visibility matter most.

The Link MXG Strada Light edition has been created as a more accessible product for people who will use less analogue inputs, and just need a CAN connection for their ECU. Whilst being very similar to the MXG Strada, the MXG Strada Light gives 4 fully configurable analogue inputs (Max of 500 Hz each) instead of the 8 that is found on the standard MXS Strada (Max of 1000 Hz each).

It also doesn’t have a digital output or a RPM connection which is found within the standard MXS Strada.

Tekniska detaljer:

• 5" compact TFT display
• 10 shift light RGB LEDs
• CAN input
• 8 street focused alarm RGB LEDs
• 4 analogue inputs (Max of 500 Hz each)

The Link MXG Strada Light Race Edition dash features customisable shift lights, eight flexible alarm LED’s and a high contrast 7-inch TFT screen display. Visual quality is always optimal as the ambient light sensor auto-adjusts the brightness of the display.

The 10 multi-coloured RGB shift lights on the MXG Strada Light can be customised to your liking to define the RPM threshold for each single gear.

The same flexibility applies to the eight configurable RGB alarm LED's. You can configure them in order to turn them on/off depending on analog or digital inputs, ECU values, expansion values, math channels or, optionally, GPS information (GPS module available). You choose conditions and colours and you can select a solid alarm or flashing one and the flashing frequency. It is also possible to configure an accompanying text message along with the alarm priorities

The dash is extremely easy to use, with buttons on the side to navigate through a library of preset display styles, depending on what information you want to see and in what layout. The screen can display all real-time information reading from the ECU such as RPM, speed, water temperature, oil pressure and much more.


The Link MXG Light connects directly to your Link ECU via the pin kit and wiring provided in the box.
To use with plugin ECU’s - CANPCB and CANF connectors will be required (Purchased separately)

The dash can be personalised via Link ECU PC Link and Aim Technologies Race Studio 3 software.

Included in the box:
Link MXG 1.2 Strada Light
USB cable
14 pin standard wiring
23 pin connector + contacts

GPS modul köps separat.

The Strada dash is also available in full-capacity 5-inch (MXS) and 10-inch (MXT) versions.

Specs:
AiM MXS 1.3 Strada Light 7" TFT Dash Display with Road Icons
Display : 7" TFT
Resolution: 800 x 480 pixels
Contrast: 600:1
Brightness: 700cd/m2 - 1,100 Lumen
Ambient Light Sensor: Yes
Alarm LEDs: 8 RGB freely configurable
Shift Lights: 10 integrated freely configurable RGB LEDs
CAN Connections: 2
ECU Connections: CAN or K-Line to 1,000+ industry leading ECUs
Expansion CAN Connection: GPS, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD
Analogue Inputs: 4 fully configurable, max 500 Hz each
EXT Video Inputs: 1 PAL-NTSC
Second CAN: Yes
Body: Anodized Aluminium
Pushbuttons: Metallic
Connectors: 1 AMP connector + 1 Binder connector
Waterproof: IP65
